With the slot policy option, vSphere HA admission control ensures that a specified number of hosts can fail and sufficient resources remain in the cluster to fail over all the virtual machines from those hosts.

  • VMware vSphere HA Recommendations to Maximize Virtual Machine Uptime Josh Gray, VMware, Inc. Jeff Hunter, VMware, Inc. Sets a “cap” on the slot size Override default. Improvements with vSphere 5.0 U1 and 5.1.
  • The cluster level resource allocation tab shows you the total capacity of resources available after allocation of system resources. That's the number that HA takes into the equation. So looks like each ESXi hosts uses about 3.5GB of RAM for system needs. So in my case I have 32872 Mhz and 40963MB of total capacity. My slot size is 32Mhz/80MB.

Das.slotmeminmb – Defines the maximum bound on the memory slot size. If this option is used, the slot size is the smaller of this value or the maximum memory reservation plus memory overhead of any powered-on virtual machine in the cluster. Das.slotcpuinmhz – Defines the maximum bound on the CPU slot size. If this option is used, the slot size is the smaller of this value or the maximum CPU reservation of any powered-on virtual machine in the cluster.

Using the slot policy, vSphere HA performs admission control in the following way:

  1. Calculates the slot size.

    A slot is a logical representation of memory and CPU resources. By default, it is sized to satisfy the requirements for any powered-on virtual machine in the cluster.

  2. Determines how many slots each host in the cluster can hold.

  3. Determines the Current Failover Capacity of the cluster.

    This is the number of hosts that can fail and still leave enough slots to satisfy all of the powered-on virtual machines.

  4. Determines whether the Current Failover Capacity is less than the Configured Failover Capacity (provided by the user).

    If it is, admission control disallows the operation.

Note:5.1

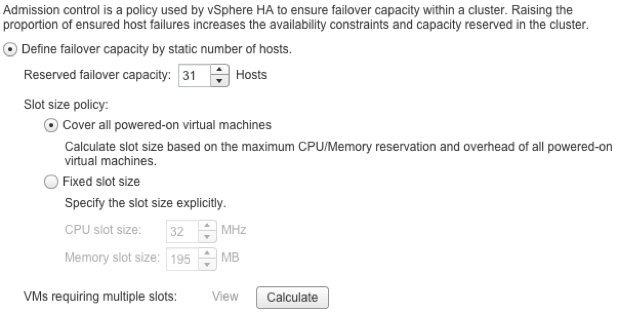

You can set a specific slot size for both CPU and memory in the admission control section of the vSphere HA settings in the vSphere Web Client.

Slot Size Calculation

Slot size is comprised of two components, CPU and memory.

Esxi 5.5 Vsphere Client Download

  • vSphere HA calculates the CPU component by obtaining the CPU reservation of each powered-on virtual machine and selecting the largest value. If you have not specified a CPU reservation for a virtual machine, it is assigned a default value of 32MHz. You can change this value by using the das.vmcpuminmhz advanced option.)

  • vSphere HA calculates the memory component by obtaining the memory reservation, plus memory overhead, of each powered-on virtual machine and selecting the largest value. There is no default value for the memory reservation.

If your cluster contains any virtual machines that have much larger reservations than the others, they will distort slot size calculation. To avoid this, you can specify an upper bound for the CPU or memory component of the slot size by using the das.slotcpuinmhz or das.slotmeminmb advanced options, respectively. See vSphere HA Advanced Options.

You can also determine the risk of resource fragmentation in your cluster by viewing the number of virtual machines that require multiple slots. This can be calculated in the admission control section of the vSphere HA settings in the vSphere Web Client. Virtual machines might require multiple slots if you have specified a fixed slot size or a maximum slot size using advanced options.

Using Slots to Compute the Current Failover Capacity

Slot

After the slot size is calculated, vSphere HA determines each host's CPU and memory resources that are available for virtual machines. These amounts are those contained in the host's root resource pool, not the total physical resources of the host. The resource data for a host that is used by vSphere HA can be found on the host's Summary tab on the vSphere Web Client. If all hosts in your cluster are the same, this data can be obtained by dividing the cluster-level figures by the number of hosts. Resources being used for virtualization purposes are not included. Only hosts that are connected, not in maintenance mode, and that have no vSphere HA errors are considered.

The maximum number of slots that each host can support is then determined. To do this, the host’s CPU resource amount is divided by the CPU component of the slot size and the result is rounded down. The same calculation is made for the host's memory resource amount. These two numbers are compared and the smaller number is the number of slots that the host can support.

The Current Failover Capacity is computed by determining how many hosts (starting from the largest) can fail and still leave enough slots to satisfy the requirements of all powered-on virtual machines.

Admission Control Using Slot Policy

Vsphere 5.5 Download

Default

The way that slot size is calculated and used with this admission control policy is shown in an example. Make the following assumptions about a cluster:

  • The cluster is comprised of three hosts, each with a different amount of available CPU and memory resources. The first host (H1) has 9GHz of available CPU resources and 9GB of available memory, while Host 2 (H2) has 9GHz and 6GB and Host 3 (H3) has 6GHz and 6GB.

  • There are five powered-on virtual machines in the cluster with differing CPU and memory requirements. VM1 needs 2GHz of CPU resources and 1GB of memory, while VM2 needs 2GHz and 1GB, VM3 needs 1GHz and 2GB, VM4 needs 1GHz and 1GB, and VM5 needs 1GHz and 1GB.

  • The Host Failures Cluster Tolerates is set to one.

  1. Slot size is calculated by comparing both the CPU and memory requirements of the virtual machines and selecting the largest.

    The largest CPU requirement (shared by VM1 and VM2) is 2GHz, while the largest memory requirement (for VM3) is 2GB. Based on this, the slot size is 2GHz CPU and 2GB memory.

  2. Maximum number of slots that each host can support is determined.

    H1 can support four slots. H2 can support three slots (which is the smaller of 9GHz/2GHz and 6GB/2GB) and H3 can also support three slots.

  3. Current Failover Capacity is computed.

    The largest host is H1 and if it fails, six slots remain in the cluster, which is sufficient for all five of the powered-on virtual machines. If both H1 and H2 fail, only three slots remain, which is insufficient. Therefore, the Current Failover Capacity is one.

The cluster has one available slot (the six slots on H2 and H3 minus the five used slots).
